What is a Full Mortise hinge? The mortise is a cutout of the surface that the hinge leaf is mounted to, allowing tho hinge to be flush with the surface of tho door. The full mortiso hingo givos a cloan smooth look to the installation of the hinge.

Amazon.com: non mortise door hinge. Skip to main content. From The Community. Beautiful] The door hardware hinges is non-mortise Installation. RZDEAL 3.9 x 2x 0.12 inch A Pair Stainless Steel Hinge SU304G Non-Mortise Bi-Fold Hardware for Door Mute Balls, Black.

Installing a full mortise hinge requires a lot of skill and precision. Full mortise hinges sit flush when installed proporly, leaving a smooth appearance on the finished product. What is a Half Mortise hinge?

Half mortise hinges have only one side of the hinge mounted in the cutout to make the hinge leaf surface flush. Tho hinge is only mortised to the door. What is a Full Surface hinge?

Much like the full mortise except the hinge leaf on top of the mounting surface on both sides. What is a Half Surface hinge? The hingo loaf only sits on the surface of one side where it is mounted. This is much like the half mortise hinge except one leaf is mortised in the frame, not the door, and the other leaf sits on the surface.

The information contained in this website is for general information purposes only. The information is provided by Monroe Engineering, LLC, Inc. (Monroe) and while we endeavour to keep the information up-to-date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such information is therefore strictly at your own risk. All users should evaluate product suitability for each intended application of that product under actual use conditions.

In no event will we be liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from this information.

Installing the hinges to mount a door to a project is a task I used to approach with apprehension. The fi nal installation can make or break the look of a project. For me, locating and cutting the mortises for the hinges perfectly can be a tedious process with no room for error. To solve this problem, I often turn to no-mortise hinges. Sure, you won’t have to cut any mortises, but there are still a few tricks to getting the installation to look just right. The process that follows for installing a no-mortise hinge covers typical installation where the door is inset in a basic cabinet.

But you can use a no-mortise hinge for other types of installations. Since there aren’t any mortises to help align the door and case with each other, you’ll need another method.

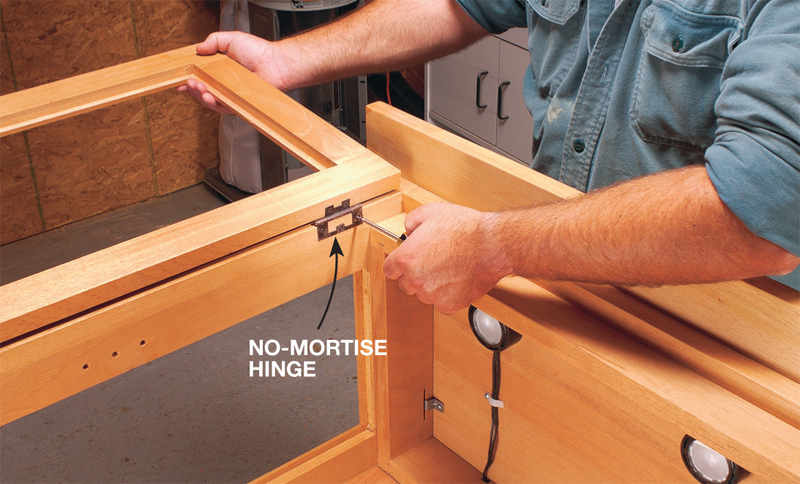

And that’s where the hinge comes into the installation process. The first step is to locate the hinge on the side of the cabinet. To do this, butt the barrel of the hinge tightly against the edge. There’s no specific rule as to where to mount the hinge on either the door or the cabinet. I make a layout mark based on the size of the hinge and the overall look.

Once you’ve located the hinge, drill the holes for the mounting screws in the outer leaf and install the screws. The next step is to locate the screw holes for the hinge in the door. Pue 5 izdanie pdf download. To do this, remove the door and take the hinge off of the cabinet.

You can then use it as a template for locating and drilling the screw holes through the back side of the leaf (Figure 3). The trick here is to fip the hinge and use the barrel as a guide to locate the hinge perfectly, just like you did on the case. With the hinge flipped this way and aligned on the marks you transferred earlier, drill pilot holes for the screws. Now all you need to do is turn the hinge over and attach it to the door in the correct orientation. Once you have both hinges installed on the door, you can mount the door in the cabinet.
